Cisco Discovery - Cisco Discovery - DRSEnt Module 5 - V.4 .

1	What prevents RIPv1 updates from being correctly advertised? an increase in network load the use of variable length subnet masks the use of multiple Layer 3 networks on the same router a variation in connection speeds on the links to a destination a mismatch between the configured bandwidth and the actual bandwidth of a link
2	What is the default administrative distance for EIGRP internal routes? 70 90 100 110 120 255

3	What is indicated when an EIGRP route is in the passive state? The route has the highest path cost of all routes to that destination network. The route must be confirmed by neighboring routers before it is put in the active state. The route is a feasible successor and will be used if the active route fails. There is no activity on the route to that network. The route is viable and can be used to forward traffic.
4	An enterprise network currently uses a star topology to connect the headquarters to four branch offices. The network administrator wants to make one of the branch offices a centralized connection for three new local offices. What is the resulting topology? full mesh partial mesh extended star topology remains a star

5	Refer to the exhibit. How is the 64.0.0.0/8 route significant to the EIGRP process? This router is advertising a summary route to an EIGRP neighbor. This router has the no autosummary command entered under the EIGRP routing process. This router drops all packets that are destined to the 64.0.0.0/8 IP address range. This router has received a summary route from an EIGRP neighbor. This router is using a summary route instead of a default route as a network design option.
6	What is the maximum distance in hops that a remote router can be and still be considered reachable by RIP? 14 hops 15 hops 16 hops 17 hops

7	Refer to the exhibit. What three conclusions can be determined based on the exhibited commands? (Choose three.) A link-state routing protocol is used. A distance vector routing protocol is used. Routing information updates are broadcast every 30 seconds. Routing information updates are broadcast every 90 seconds. Hop count is the only metric used for route selection. Bandwidth, load, delay, and reliability are metrics that are used for route selection.
8	Refer to the exhibit. Routers A and B have EIGRP configured, and automatic summarization has been disabled on both routers. Which command applied on interface S0/0/0 of router A manually summarizes the networks in EIGRP advertisements to router B? ip area-range eigrp 1 192.168.10.80 255.255.255.224 ip summary-address eigrp 1 192.168.10.64 255.255.255.192 ip summary-address 192.168.10.80 0.0.0.31 ip summary-address eigrp 1 192.168.10.64 0.0.0.63 ip area-range eigrp 1 192.168.10.64 255.255.255.224

9	Which two features of EIGRP are different from RIPv2? (Choose two.) routing metric VLSM support routing updates classless routing MD5 authentication method
10	Refer to the exhibit. The network is configured with RIP routing. Which mechanism prevents R1 from sending an information update about network A to R3? poisoned reverse split horizon holddown timers TTL

11	What three statements are true about routers that are configured for EIGRP? (Choose three.) They can support multiple routed protocols. They can support only link-state protocols. They send their entire topology tables to neighboring routers. They send partial routing updates in response to topology changes. They send routing updates to all other routers in the network. They use hello packets to inform neighboring routers of their status.
12	When should EIGRP automatic summarization be turned off? when a router has not discovered a neighbor within three minutes when a router has more than three active interfaces when a network contains discontiguous network addresses when a router has less than five active interfaces when a network addressing scheme uses VLSM

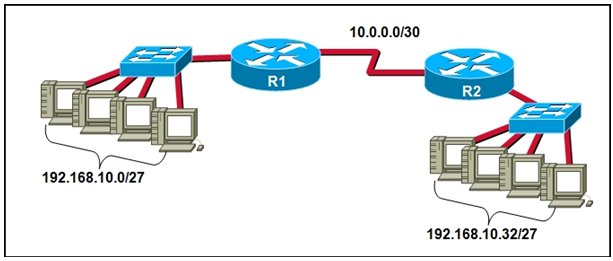

13	Refer to the exhibit. R1 is not receiving updates from R2. Conversely, R2 is not receiving updates from R1. RIP version 1 is configured. All interfaces are up and functioning. The network statements are correct. All IP addressing is correct. What can be done to fix this problem? Convert RIP version 1 to version 2 using the version 2 command.. Remove automatic classful summarization with the no auto-summary routing protocol command. Replace RIP version 1 with version 2 and disable automatic classful summarization. On both routers, configure the serial interface as a passive interface.  On both routers, change the subnet mask on the Fast Ethernet interface to be 255.255.255.0.
14	What does a router that is running RIP use to determine the best path to take when forwarding data? the host portion of the network address the speed of network convergence the calculated metric for the destination network the number of broadcasts occurring on an interface the number of errors occurring on an interface

15	What two statements are correct regarding EIGRP authentication? (Choose two.) EIGRP authentication uses the MD5 algorithm. EIGRP authentication uses a pre-shared key. EIGRP authentication requires that both routers have the same key chain name. EIGRP authentication uses varying levels of WEP to encrypt data exchanged between routers. EIGRP authentication can be configured on one router and updates from this router are protected; whereas a neighbor router can be without the authentication configuration and its updates are unprotected.
16	Refer to the exhibit. The network administrator needs to configure a default route on the border router. Which command correctly configures a default route that will require the least amount of router processing when forwarding packets? ip route 0.0.0.0 0.0.0.0 64.100.59.5 ip route 0.0.0.0 0.0.0.0 64.100.59.6 ip route 0.0.0.0 0.0.0.0 s0/0/1 ip route 0.0.0.0 0.0.0.0 s1/2/1
17	How do EIGRP routers establish and maintain neighbor relationships? by exchanging neighbor tables with directly attached routers by comparing known routes to information received in updates by exchanging hello packets with neighboring routers by dynamically learning new routes from neighbors by exchanging routing tables with directly attached routers

18	Refer to the exhibit. A network administrator is troubleshooting a routing problem. When the show ip route command is entered on RTR-1, only the serial link between RTR-2 and RTR-3 has been learned from the RIP routing protocol. What are two issues? (Choose two.) RIPv1 is a classful routing protocol. RIPv1 does not support subnetting. The Ethernet networks on RTR-2 and RTR-3 were not entered correctly in the network statements on these routers. RIPv1 does not support VLSM. RIPv1 is a classless routing protocol.

20	Refer to the exhibit. Which statement is true about the output from the show ip protocols command? RIPv2 is configured on this router. Auto summarization has been disabled. The next routing update is due in 17 seconds. 192.168.16.1 is the address configured on the local router.
21	Refer to exhibit. What two features are true of the exhibited topology? (Choose two.) introduces a single point of failure is required when no downtime is acceptable provides the maximum redundancy available provides redundancy to critical areas represents an extended star topology is used to meet uptime and reliability requirements while limiting costs

22	Which Layer 4 protocol does EIGRP use to provide reliability for the transmission of routing information? DUAL IP PDM RTP TCP UDP
23	A network administrator issues the command show ip route and observes this line of output: 192.168.3.0/24 [120/2] via 192.168.2.2, 00:00:05, Serial0/0  What two pieces of information can be obtained from the output? (Choose two.) RIP is the routing protocol that is configured. This is a static route to network 192.168.3.0. The metric for this route is 2. The next periodic update is in 5 seconds. The autonomous system number is 120.

24

What is the purpose of the network command when RIP is being configured as the routing protocol? It identifies the networks connected to the neighboring router. It restricts networks from being used for static routes. It identifies all of the destination networks that the router is allowed to install in its routing table. It identifies the directly connected networks that will be included in the RIP routing updates. 19 В корпоративной сети на настоящий момент используется звездообразная топология для соединения центрального офиса с четырьмя филиалами. Сетевому администратору требуется сделать один из филиалов точкой централизованного соединения с тремя новыми локальными офисами. Какая топология получится в результате этого? Верно Ответ Ваш Ответ полносвязная ячеистая частично-ячеистая расширенная звезда топология останется звездообразной 21 Посмотрите на изображение. Что представляет собой маршрут Null0 для сети 128.107.0.0? Верно Ответ Ваш Ответ Заданный дочерний маршрут. Заданный родительский маршрут, исходящий из физического интерфейса. Суммарный маршрут для объявлений, не являющийся действительным путем. Результат выполнения команды no auto-summary на маршрутизаторе. 24 Посмотрите на изображение. Маршрутизаторы настроены с использованием EIGRP и значений K по умолчанию. По какому маршруту пойдет пакет из сети A в сеть B? Верно Ответ Ваш Ответ R1, R2, R5 R1, R3, R5 R1, R2, R3, R5 R1, R2, R4, R5 R1, R3, R2, R5 R1, R3, R2, R4, R5
